| Aircraft |
| Weight |
| Weight |
192 g |
192 g |

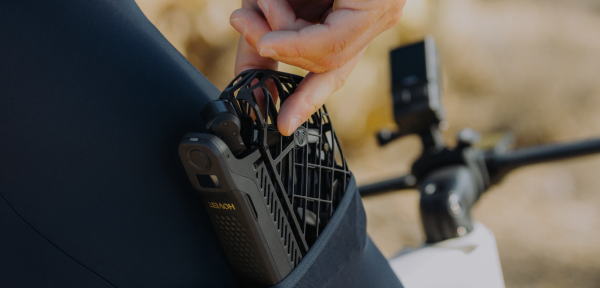

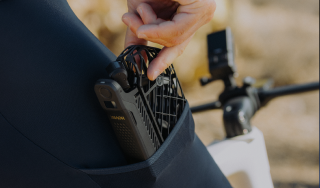

| Dimensions (LxWxH) |
| Dimensions (LxWxH) |
Folded: 105×149×34 mm
Unfolded: 173×149×39 mm |
Folded: 105×149×34 mm
Unfolded: 173×149×39 mm |
| Max Ascent Speed |
| Max Ascent Speed |
3m/s |
3m/s |
| Max Descent Speed |
| Max Descent Speed |
3m/s |
3m/s |
| Max Horizontal Speed |
| Max Horizontal Speed |
11.7 m/s （42 km/h） |
11.7 m/s （42 km/h） |
| Max Takeoff Altitude |
| Max Takeoff Altitude |
5500 m |
5500 m |
| Max Flight Time |
| Max Flight Time |
16 minutes |
16 minutes |

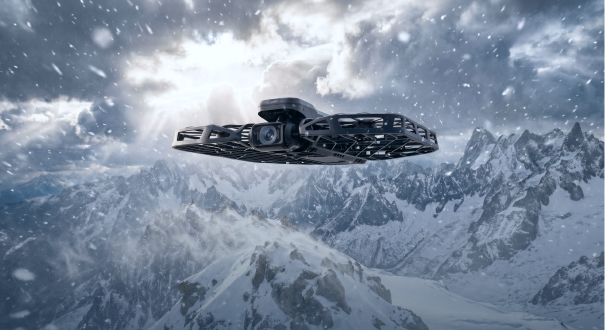

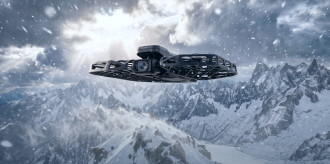

| Max Wind Speed Resistance |
| Max Wind Speed Resistance |
10.7 m/s (24 mph) (Level 5) |
10.7 m/s (24 mph) (Level 5) |
| Operating Temperature |
| Operating Temperature |
Power-on: -20°C to 65°C
Flight: -10°C to 45°C |
Power-on: -20°C to 65°C
Flight: -10°C to 45°C |
| Internal Storage |
| Internal Storage |
64 GB internal storage
Supports microSD cards |
32 GB internal storage
Supports microSD cards |
*We recommend using Lexar 633 Series microSD cards (64GB, 128GB, 256GB, 512GB), Lexar 1066 Series (1TB), or other Lexar microSD cards that support V30/V60. Support for other microSD card brands may vary. We're continuously improving compatibility to include more options.
*For recording in 8K or 4K@120/100fps, please use microSD cards with a V60 or higher video speed rating. |
| * For 8K@24/25/30 fps or 4K@100/120 fps recording, use a microSD card with V60 or higher video speed class. |
* For 4K@100/120 fps recording, use a microSD card with V60 or higher video speed class. |
| Class |
| Class |
C0 (EU) |
C0 (EU) |
| Camera |
| Image Sensor |
| Image Sensor |
1/1.3'' |
1/2'' |
| Lens |
| Lens |
FOV: 107°
Format Equivalent: 16 mm
Aperture: f/2.55
Focus: 0.6 m to ∞ |
FOV: 104°
Format Equivalent: 17 mm
Aperture: f/2.8
Focus: 0.4 m to ∞ |
| ISO Range |
| ISO Range |
100-12800 |
100-6400 |
| Photo Format |
| Photo Format |
JPEG
DNG (RAW 10-bit) |
JPEG |
| Video Resolution |
| Video Resolution |
Standard:
8K: 7680×4320 @24/25/30 fps
4K: 3840×2160 @24/25/30/50/60/100/120 fps
1080p: 1920×1080 @24/25/30/50/60/100/120 fps |
Standard:
4K: 3840×2160 @24/25/30/50/60 fps
1080p: 1920×1080 @24/25/30/50/60/100/120 fps |
HLG / HDR / H-Log (horizontal):
4K: 3840×2160 @24/25/30/50/60 fps
1080p: 1920×1080 @24/25/30/50/60 fps |
- |
Vertical:
4K: 3840×2160 @24/25/30/50/60 fps
2.7K: 1512×2688 @24/25/30/50/60 fps
1080p: 1080×1920 @24/25/30/50/60 fps |
Vertical:
2.7K: 1512×2688 @24/25/30/50/60 fps
1080p: 1080×1920 @24/25/30/50/60 fps |
HLG / HDR / H-Log (vertical):
2.7K: 1512×2688 @24/25/30/50/60 fps
1080p: 1080×1920 @24/25/30/50/60 fps |
- |
Slow-Motion:
4K: 3840×2160 @100/120 fps
1080p: 1920×1080 @100/120 fps |
Slow-Motion:
1080p: 1920×1080 @100/120 fps |
| Video Format |
| Video Format |
MP4 (H.264 / H.265 (HEVC))
*10-bit HLG is only available in HEVC |
MP4 (H.264 / H.265 (HEVC)) |
| Video Coding |
| Video Coding |
H.264, H.265 |
H.264, H.265 |
| Max Video Bitrate |
| Max Video Bitrate |
160 Mbps (8K@30 fps) |
100 Mbps (4K@60 fps) |
| Supported File System |
| Supported File System |
exFAT |
exFAT |
| Color Mode |
| Color Mode |
Standard (8-bit)
HDR (8-bit）
HLG (10-bit）
H-Log (10-bit) |
Standard (8-bit) |
| Digital Zoom |
| Digital Zoom |
2x |
2x |
| Gimbal |
| Stabilization |
| Stabilization |
2-axis mechanical gimbal (tilt, roll) + EIS |
2-axis mechanical gimbal (tilt, roll) + EIS |
| Mechanical Range |
| Mechanical Range |
-90°-15° |
-90°-15° |
| Controllable Range |
| Controllable Range |
-90°-15° |
-90°-15° |
| Angular Vibration Range |
| Angular Vibration Range |
±0.01° |
±0.01° |

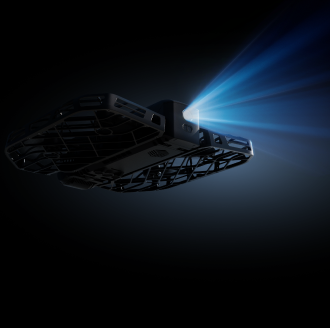

| Sensing |
| Rear |
| Rear |
ToF + vision sensor (VIO) |
ToF sensor |
| Downward |
| Downward |
Vision positioning + ToF |
Vision positioning + ToF |
| Video Transmission |
| Operating Frequency |
| Operating Frequency |
2.4000–2.4835 GHz
5.150–5.250 GHz
5.725–5.850 GHz |
2.4000–2.4835 GHz
5.150–5.250 GHz
5.725–5.850 GHz |
| Operating frequency varies by country and region. Please refer to local laws and regulations for details. |
| Max Transmission Distance (free of interference) |
| Max Transmission Distance (free of interference) |
Beacon & JoySticks: 1km
Hover APP: 500m |
Beacon & JoySticks: 1km
Hover APP: 500m |
| Wi-Fi |
| Protocol |
| Protocol |
Wi-Fi 6 |
Wi-Fi 5 |
| Operating Frequency |
| Operating Frequency |
2.4000–2.4835 GHz
5.150–5.250 GHz
5.725–5.850 GHz |
2.4000–2.4835 GHz
5.150–5.250 GHz
5.725–5.850 GHz |
| Operating frequency varies by country and region. Please refer to local laws and regulations for details. |
| Battery |
| Capacity |
| Capacity |
1920mAh |
1920mAh |
| Weight |
| Weight |
62 g |
62 g |
| Nominal Voltage |
| Nominal Voltage |
7.38V |
7.38V |
| Max Charging Voltage |
| Max Charging Voltage |
8.5V |
8.5V |
| Type |
| Type |
Li-Po |
Li-Po |
| Energy |
| Energy |
14.17Wh |
14.17Wh |
| Charging Temperature |
| Charging Temperature |
5℃~40℃ (41°F~104°F) |
5℃~40℃ (41°F~104°F) |
| Charging Time |
| Charging Time |
Charging Hub:
45 minutes (1 battery)
60 minutes (2 batteries)
In-aircraft charging:
55 minutes (1 battery)
|
Charging Hub:
45 minutes (1 battery)
60 minutes (2 batteries)
In-aircraft charging:
55 minutes (1 battery)
|
| * Recommended Charger: 65W official charger required for fast charging |

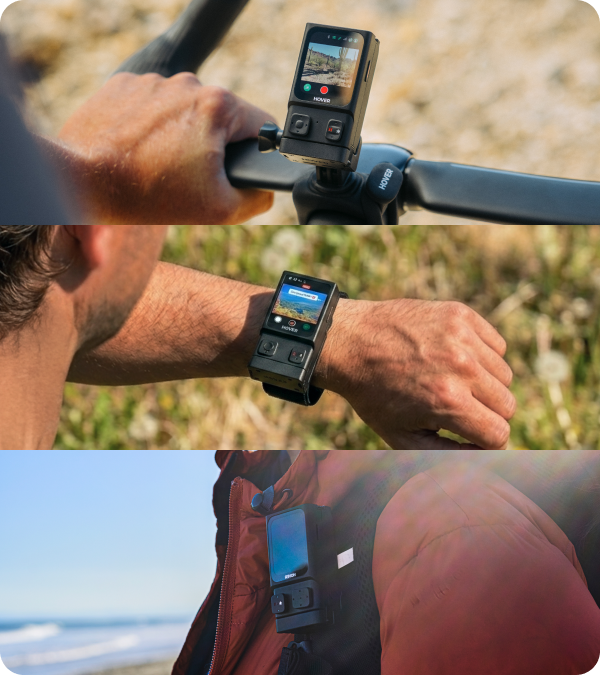

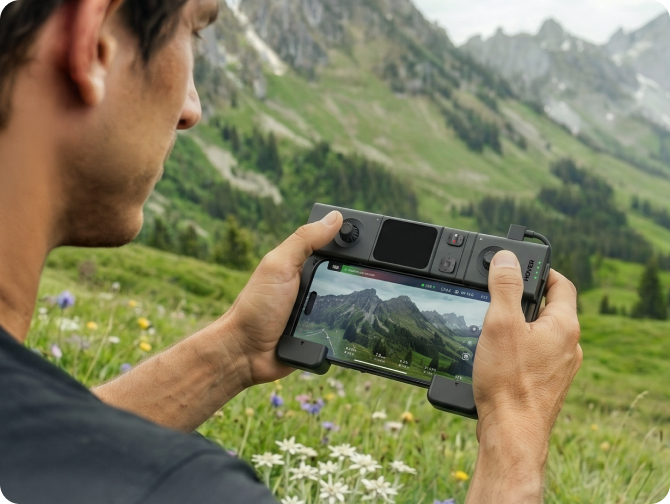

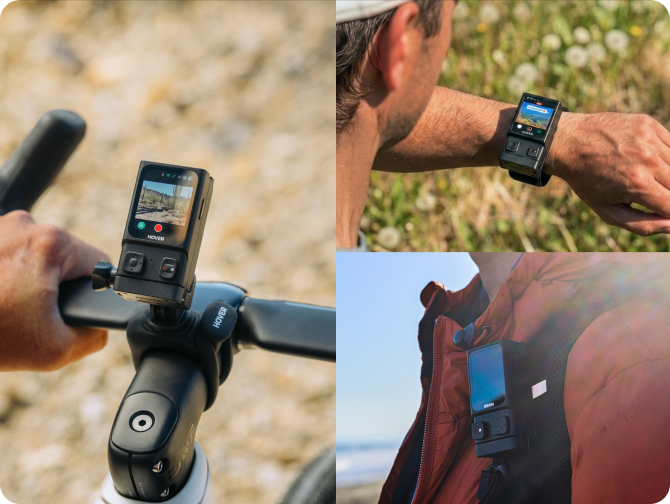

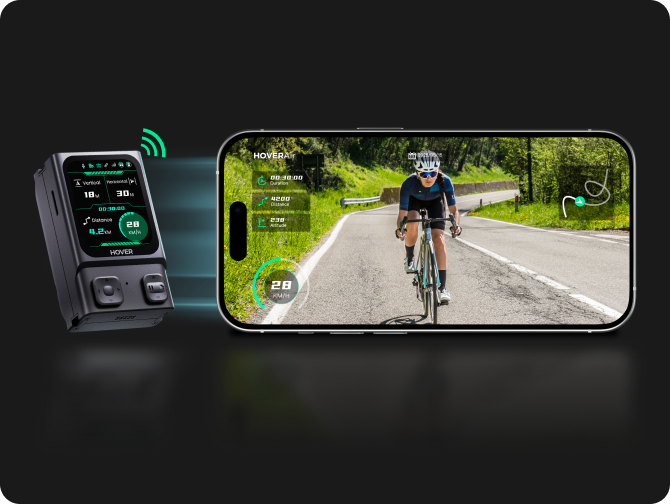

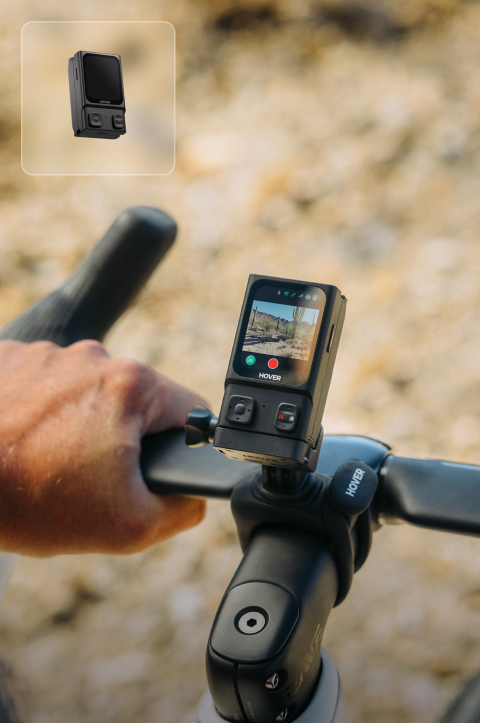

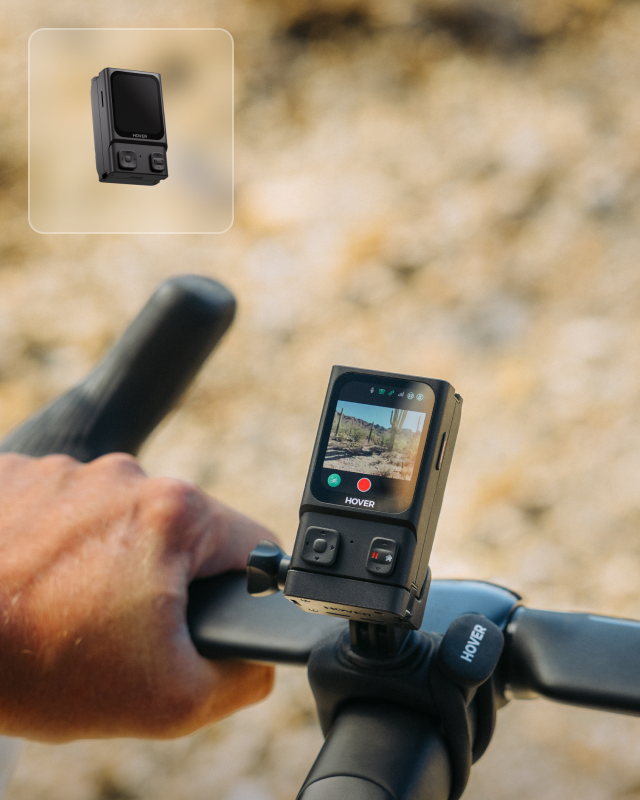

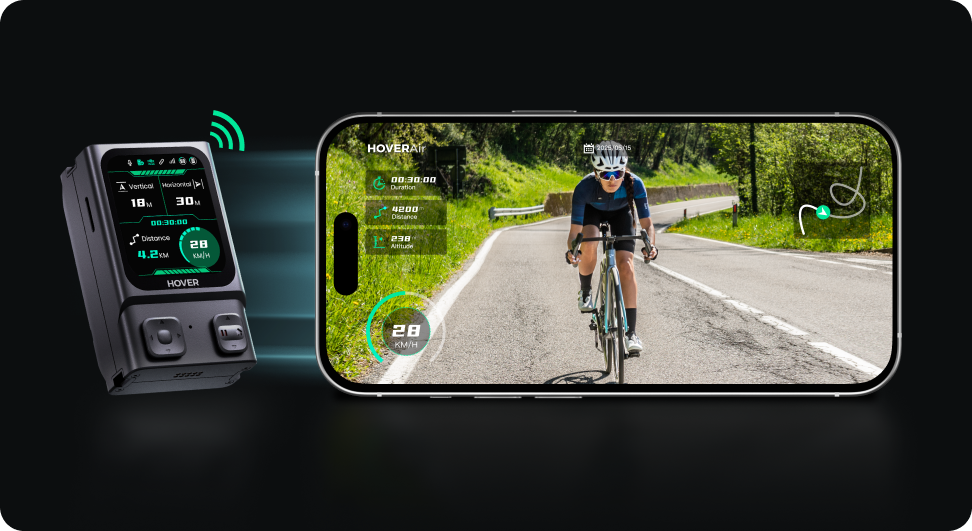

| Beacon & Joysticks |
| Max Operating Time |
| Max Operating Time |
Beacon(without phone): 120 minutes
Beacon+Joystick A/Joystick A+B(without phone): 150 minutes
Beacon(with phone): 60 minutes |
| Operating Temperature |
| Operating Temperature |
20℃-40℃ |
| Charging Time |
| Charging Time |
Beacon: 60-90 minutes (input: 5W)
Joystick: 75 minutes
Beacon+Joysticks: 2.5-3 hours |
| Battery Capacity |
| Battery Capacity |
Beacon only: 120 minutes
Beacon + Joystick A (or multiple joysticks) (no smartphone display): 150 minutes
Beacon + Joystick A (or multiple joysticks) (with smartphone display): 60 minutes |
| Real-time monitoring |
| Real-time monitoring |
Yes |
| Max Transmission Distance |
| Max Transmission Distance |
Strong interference, no obstructions
City centers, office buildings, residential areas:
30–120 m
Medium interference, no obstructions
Suburban areas, open spaces like parks:
100–300 m
Weak interference, no obstructions
Open suburban areas, wide outdoor spaces:
300–800 m
Maximum range under optimal conditions
Tested in remote, wide-open, unobstructed areas with minimal wireless interference. Actual range may vary and is typically lower in everyday environments:
Up to 1 km
|
| Maximum flight altitude |
| Maximum flight altitude |
120m |
| Flight mode selection |
| Flight mode selection |
Yes |
| Camera settings adjustment |
| Camera settings adjustment |
Yes |
| Noise-cancellation sound recording |
| Noise-cancellation sound recording |
Yes |

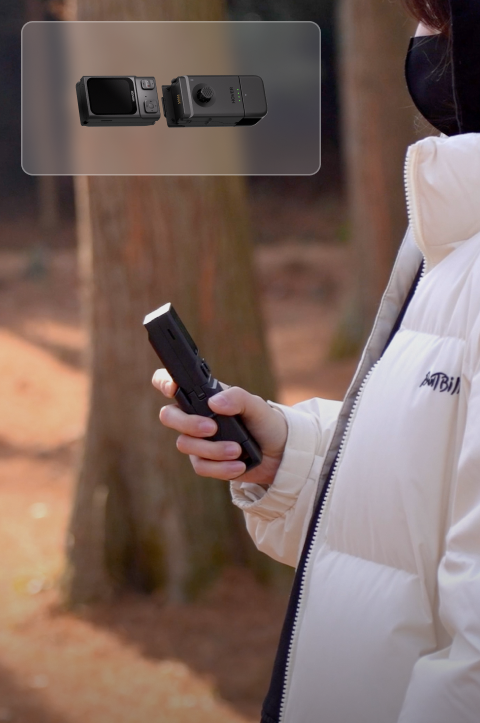

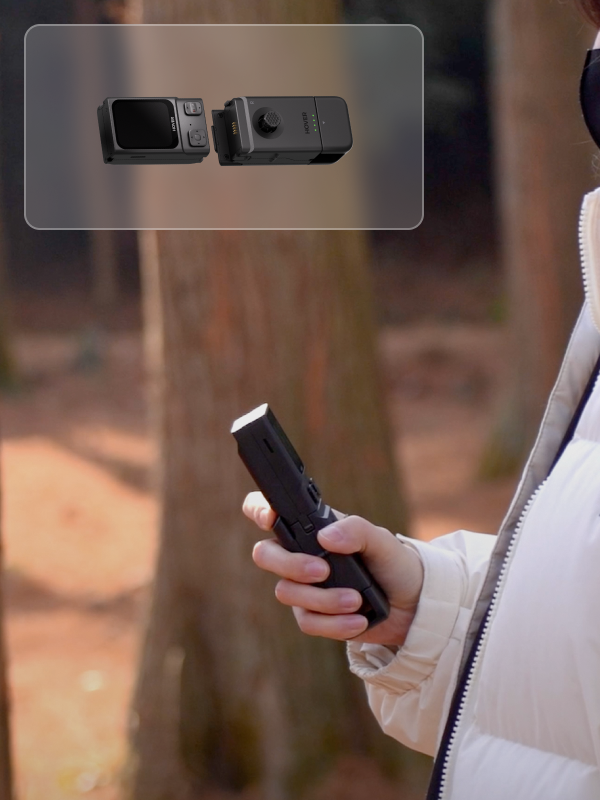

| One-handed controller |
| One-handed controller |
Yes |

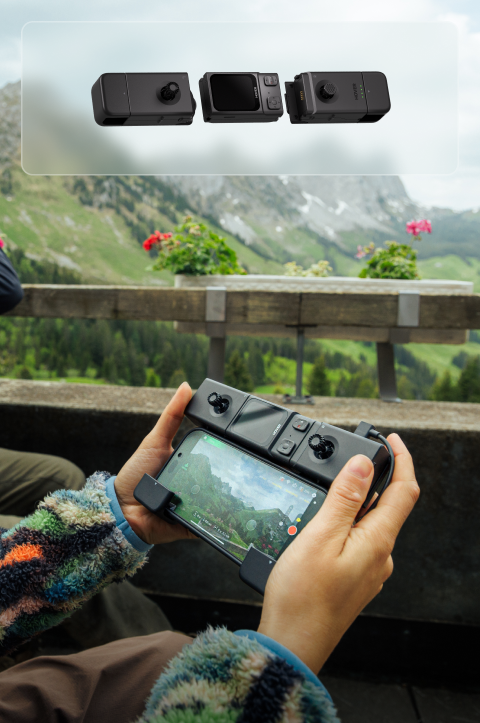

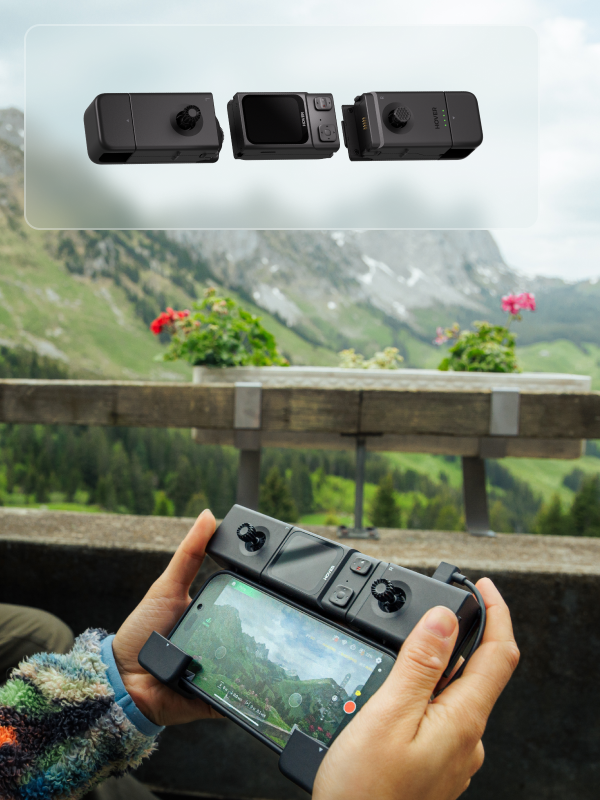

| Two-handed controller |
| Two-handed controller |
Yes |
| HoverLink |
| HoverLink |
Yes |
| Return-to-home (RTH) |
| Return-to-home (RTH) |
Yes |
